Drawing Review & Glass Processing RFQ Preparation
Prepare a glass processing RFQ with the drawing files, glass type, tolerance, surface finish, quantity and inspection information needed for a clear feasibility review.
A clear glass processing RFQ helps us check process fit and quotation direction faster. Include the drawing, glass type, tolerance, surface finish, quantity and inspection notes so the project can be matched with the right glass processing route.
RFQ Checklist
What to Include When Sending Drawings
2D drawing or 3D model file: STEP, STP, DXF, DWG, PDF, IGS, IGES or ZIP.
Glass type, thermal history and any glass certificate requirement.
Critical dimensions, datums, tolerance, hole diameter, slot width, corner radius and surface finish.
Quantity, prototype or batch requirement, target delivery time and destination country.
Inspection requirement such as dimensional report, CMM check, surface roughness or photo confirmation.
Drawing Examples
Drawing Details That Help glass processing review
These drawing examples show the details that speed up glass processing review: material notes, tolerances, surface finish, datums, hole locations, slot widths, corner radii and critical features. Remove confidential customer information before sharing when needed.

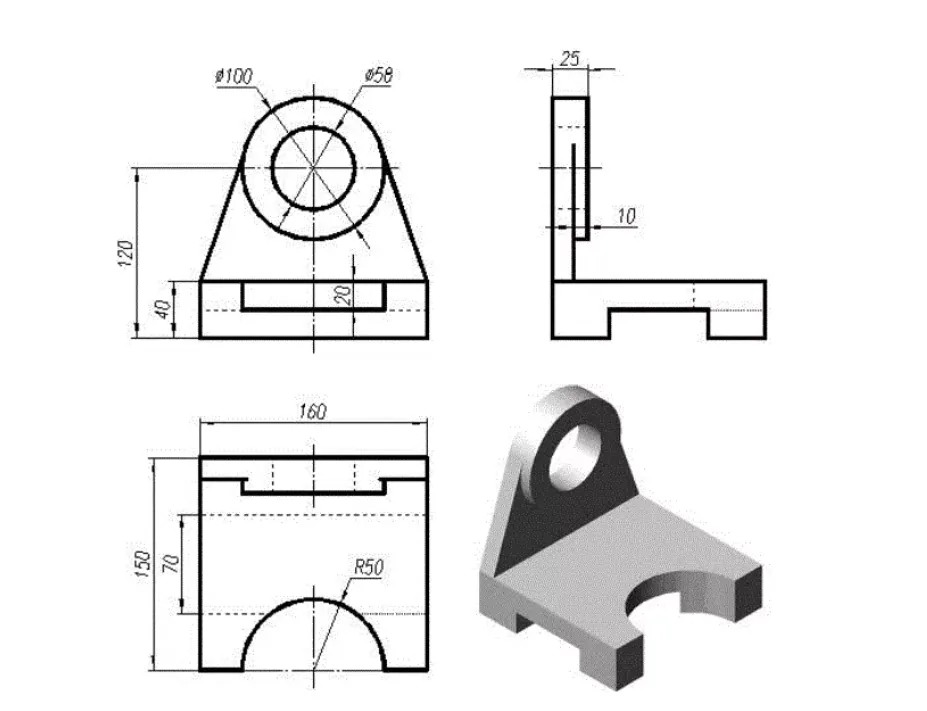

Bore and feature drawing

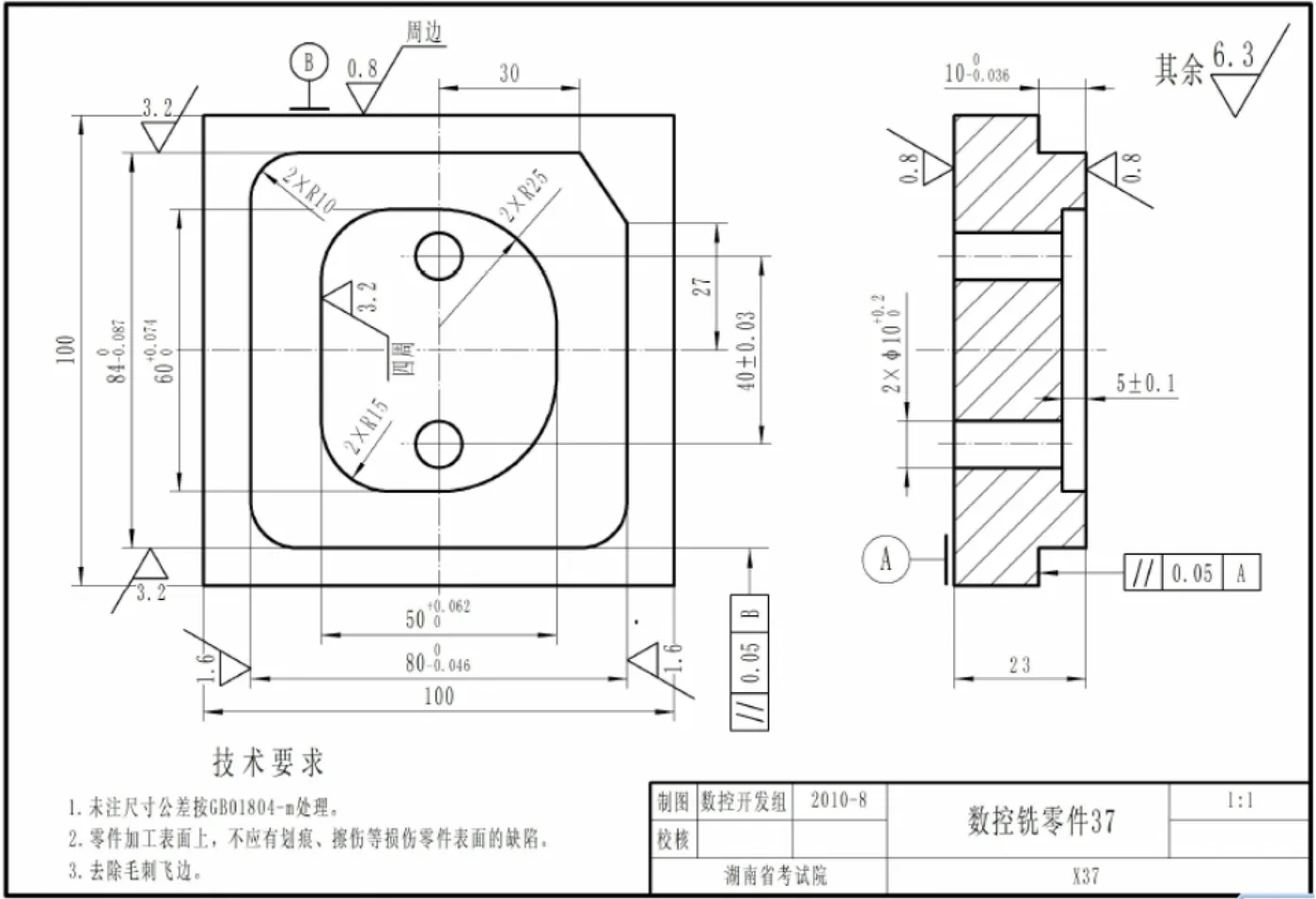

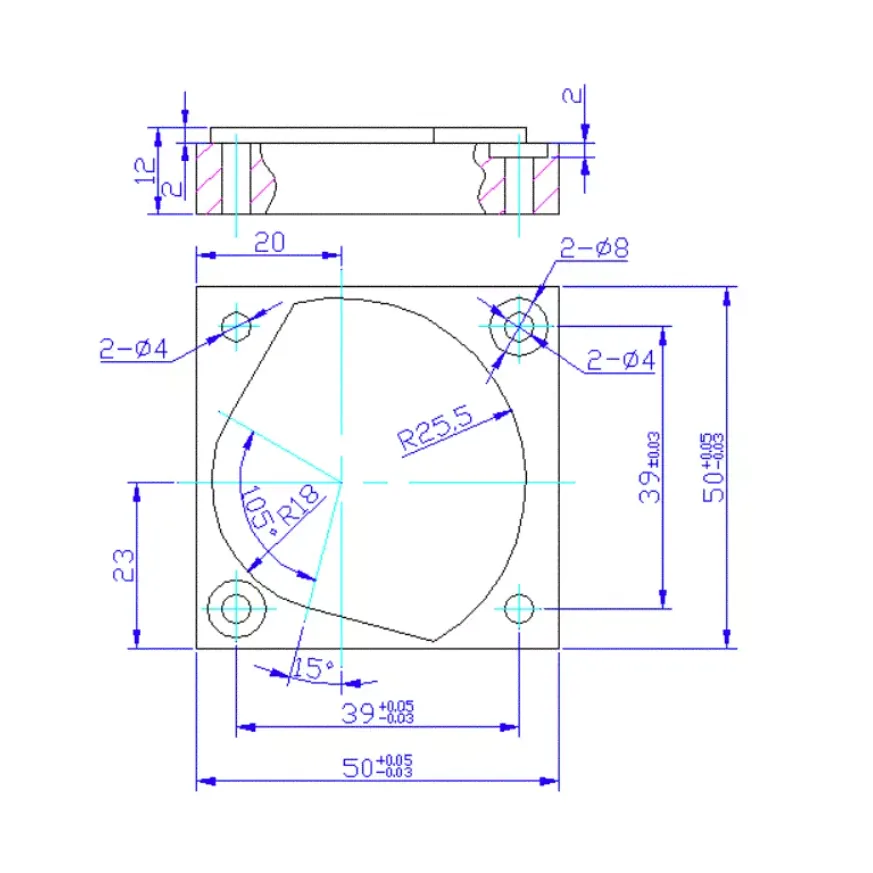

Dimensioned part drawing

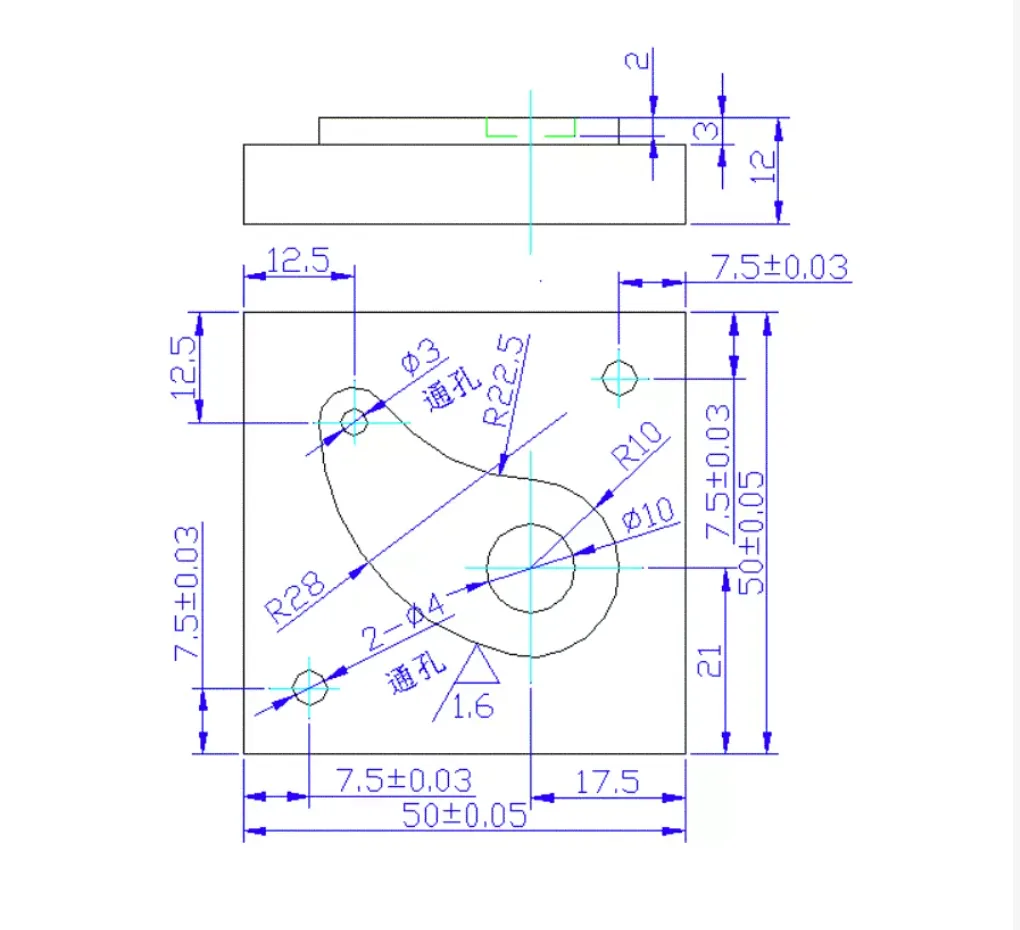

Hole location review

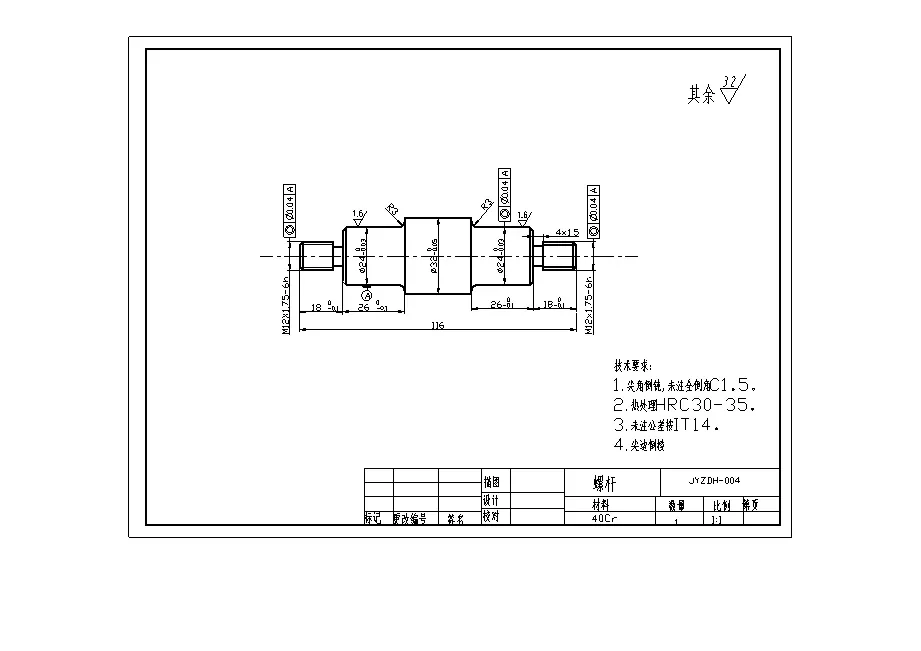

Glass Type and technical notes

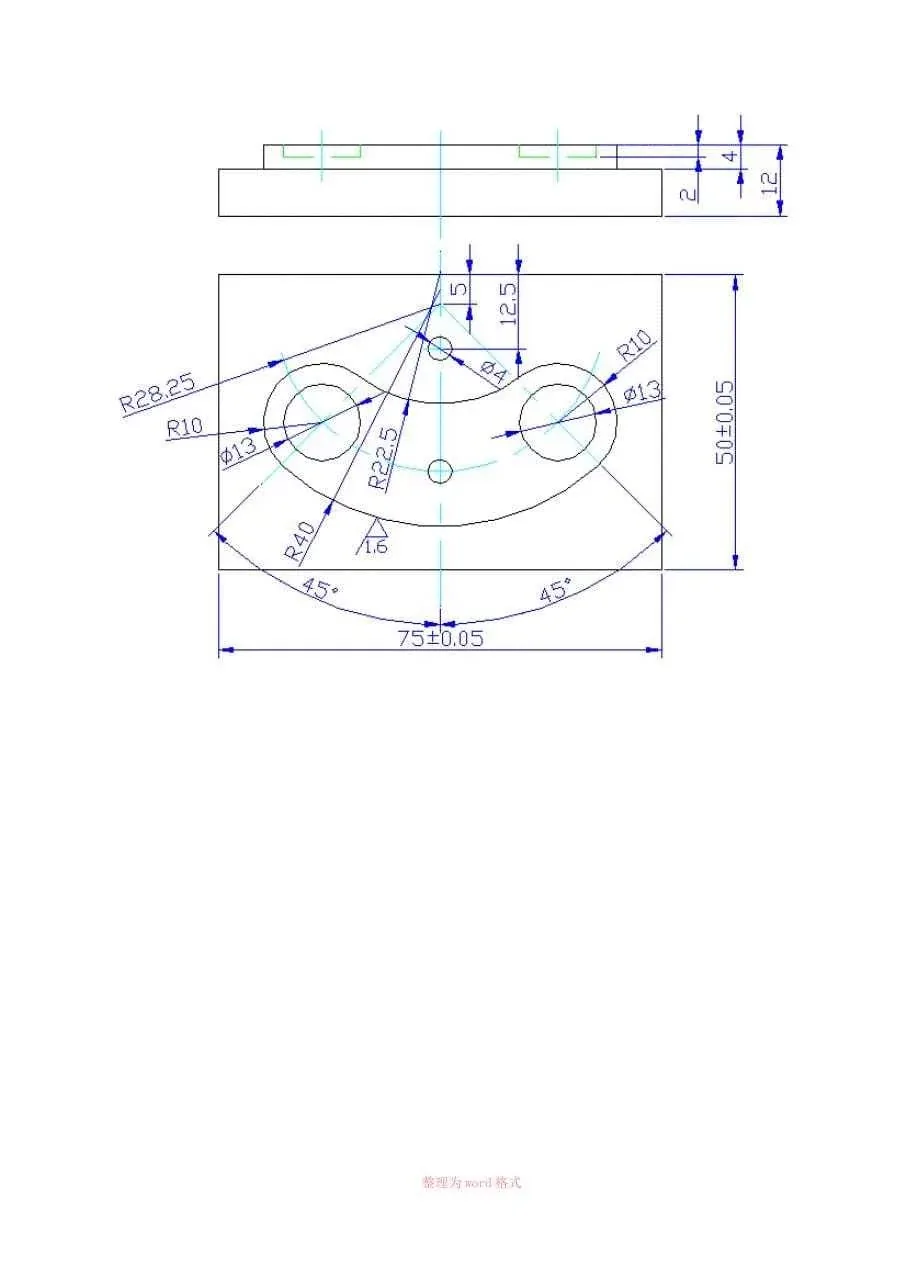

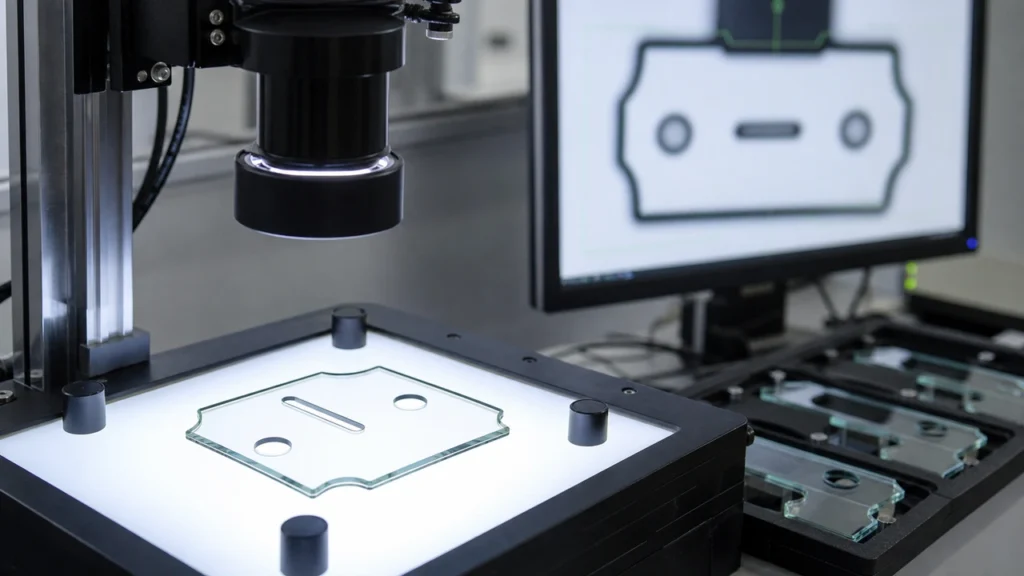

Tolerance and surface review
Glass Processing RFQ Support
Send Your Drawing for glass processing review
Upload STEP, STP, DXF, DWG, PDF, IGS, IGES or ZIP files. Include glass type, thickness, tolerance, surface finish, quantity and any inspection requirements so we can review process fit before quoting.
